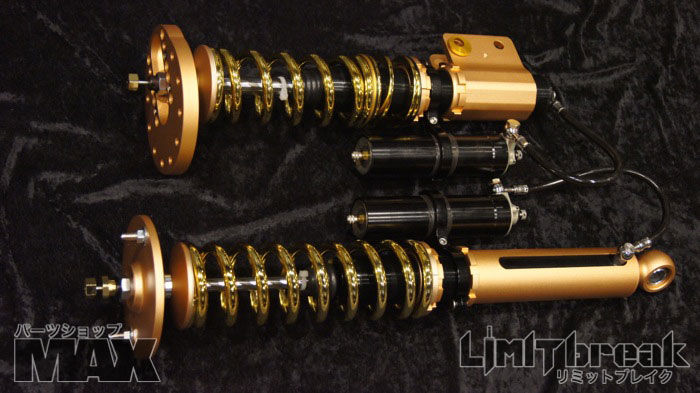

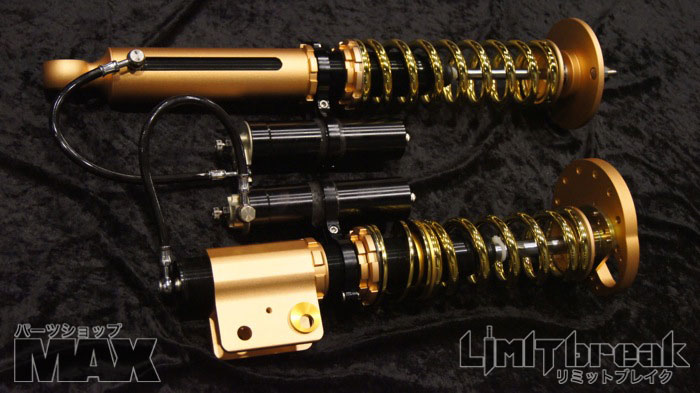

Proven throughout the 2014-2015 Formula Drift Seasons in cooperation with Matt Field and the Drift Cave S14 crew, we extend the opportunity to purchase the most advanced and most adjustable drift specific suspension ever offered.

~ Drift specific linear piston valving for consistent grip throughout our Formula Drift competition data logged shaft speeds
~ Triple adjustable damping through the rebound knob on top of the damper and
~ Penske High and Low speed compression adjustable 7 inch reservoirs with brackets and swivel hose fittings
~ Schrader valves on the reservoir give an easy access point to adjust the 150psi front and 100psi rear nitrogen pressures
~ FOX advanced suspension fluid - high capacity for heat absorption and dissipation - low CST@40c for sensitivity
~ Custom long travel shock shafts 14mm OD rear and 20mm front with 16mm threaded top for shear strength through the front upper mount
~ Super long 300mm Front and 330mm rear full tap shock bodies with plenty of ride height adjustability
~ KPI and camber adjustable front lower mounts with gold anodized on center and on slot end aluminum lock out inserts
~ Aluminum anodized Camber & Caster top plate with adjustment all the way to the Formula Drift Legal limit bolt circle center.
~ Low torque PTFE lined maintenance free spherical bearings for quick steering response and return
~ 8KG 180mm Japanese super light linear high tensile Front spring with 3KG 57mm helper and 6KG 250mm rear spring
~ 36 stainless steel slip rings 3 above and 3 below each spring gives freedom of twisting to prevent spring binding
~ Each shock is hand built at Parts Shop MAX USA and individually tested on our in house Roehrig dyno
~ Limitless custom configurations, tune ability and rebuild ability means this is the last coil over set you will ever need

*We will not be accepting sponsorship inquiries however we will simply give you a break if you have some sticker space available & buy 2 sets at once as required by any professionally ranked racing program that must pack spares of everything.
