350z Coilovers, Complete multilink, and Super Steering Angle! << Previous thread | Next thread >>
Go to page   <<        >>
Moderators: Parts Shop Max, Dan at MAX USA
Author Post
Dan at MAX USA
Wed Mar 14 2012, 12:33am

Registered Member #2
Joined: Sun Jan 21 2007, 08:28pm

Posts: 2866
 this is what the reinforced kit looks like, we are shipping these now.





Back to top
Fish
Wed Mar 14 2012, 06:26pm
Registered Member #986
Joined: Thu Feb 24 2011, 08:40pm

Posts: 82
 Dope!! Cant wait to get them back!
Back to top
Royal_T
Thu Mar 15 2012, 11:33am
Registered Member #951
Joined: Sun Jan 23 2011, 08:21am

Posts: 63
 Looking sick... Can't wait
Back to top
Dan at MAX USA
Thu Mar 15 2012, 07:36pm

Registered Member #2
Joined: Sun Jan 21 2007, 08:28pm

Posts: 2866
 the modded part by itself
Back to top
Dan at MAX USA
Mon Mar 19 2012, 07:25pm

Registered Member #2
Joined: Sun Jan 21 2007, 08:28pm

Posts: 2866
 install pix

Loads of angle! we love it!!

This was shot through the bumper, as you can see we have the U turn radius of a tank

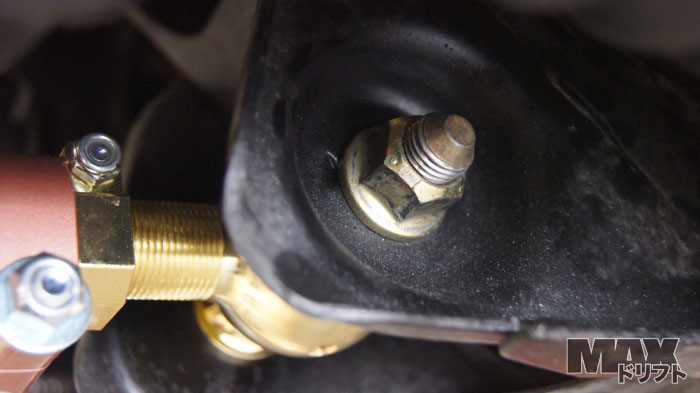

Before you get started with install, look closely at ths dimple punched in the subframe near this nut and bolt. You have to slice the bumps off the inside of the subframe with a cut off wheel to get our (flat) bearing side spacers to slide into the subframe. (and you should spray paint the cut steel black again)

We covered up the tie rod and rack offset spacer with a (universal fit) long rubber shock boot from a local off road truck accessory shop.

This car came to us with 25mm wheel spacers, and adjustable upper arms, so we dialed out the LCA and the UCA 25mm each and ditched the wheel spacer. However I must caution everyone that this is the absolute longest we could go on this customers tein Z33 inner tie rods. We recommend S14 inner tie rods for the most thread overlap with the turnbuckle for strength. This car has a wheel and tire size of 18x9.5+12 235/40/18

In these next few shots you can see the contact surface of the aluminum knuckle has been sanded down for MAX angle.
You can grind little by little to find the right amount of bumpstop for your car's setup to tune the final angle to the wheel size & offset.

When you are mounting the gold knuckle bracket, you have to tighten the left and right bolt little by little to bring up the bracket flat. If you tighten one side all the way then go to do the other side it will not line up nearly as well.

Another shot of the bump stop surface contact near full lock

This is the position you want the Compression (caster) rod end joint when the car is in the air and the suspension is at full droop. That puts the ball in the happy spot when the car is at static ride height.

The way you get it in position is with the car in the air, angle the joint into position with a screwdriver and then clamp the rod end receiver.


[ Edited Fri Sep 04 2015, 11:27pm ]
Back to top
Dan at MAX USA
Tue Mar 20 2012, 01:56am

Registered Member #2
Joined: Sun Jan 21 2007, 08:28pm

Posts: 2866
 This is all the angle you ever dreamed of and more









[ Edited Tue Mar 20 2012, 01:59am ]
Back to top
Fish
Tue Mar 20 2012, 09:19pm
Registered Member #986
Joined: Thu Feb 24 2011, 08:40pm

Posts: 82
 Fuuu!! Great pic's and info!
Back to top
Hollywood
Wed Mar 21 2012, 05:34am
Registered Member #708
Joined: Sun Feb 28 2010, 07:22pm

Posts: 653
 that lower control arm gusset is the bong digity son!! love it. production value is sooo high!!
Back to top
Dan at MAX USA
Wed Mar 21 2012, 08:56pm

Registered Member #2
Joined: Sun Jan 21 2007, 08:28pm

Posts: 2866
 A customer already crashed their car into a wall! Whats important to see here is that the compression rod absorbed the crash energy instead of the subframe mount. He also bent the little tooth on the rack offset spacer. That rod/spacer is cheap and easy to replace. The remainder of the kit was unharmed. (we have new parts on the way to him now at $150 shipped)

[ Edited Wed Mar 21 2012, 09:03pm ]
Back to top
Fish
Sun Mar 25 2012, 07:08pm
Registered Member #986
Joined: Thu Feb 24 2011, 08:40pm

Posts: 82
 When are the z33 coilovers back in stock?
Thanks,
Back to top
